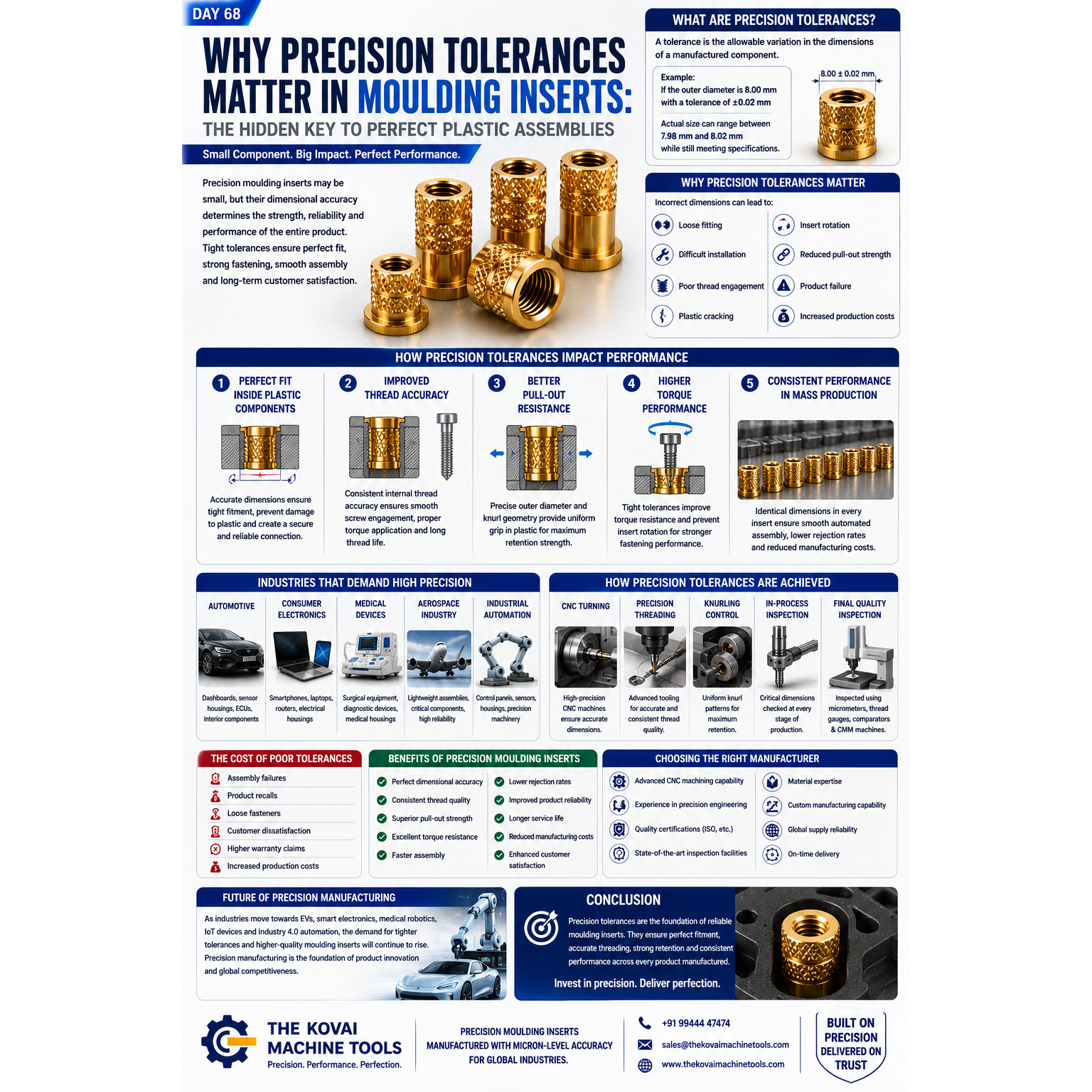

Precision Tolerances Matter in Moulding Inserts: The Hidden Key to Perfect Plastic Assemblies
Introduction
In today's highly competitive manufacturing industry, precision is no longer an advantage—it is a necessity. Whether it's an automotive sensor housing, a medical device, an electronic enclosure, or an industrial control panel, every component must fit perfectly and perform reliably throughout its service life.
One small component that plays a significant role in achieving this reliability is the precision moulding insert.
Although moulding inserts are relatively small, their dimensional accuracy directly impacts the strength, functionality, and lifespan of the entire product. A variation of even a few microns can lead to assembly issues, loose fasteners, thread failures, product recalls, and increased production costs.
This is where precision tolerances become critical.
Manufacturers worldwide invest in high-precision moulding inserts because consistent tolerances ensure smooth assembly, stronger fastening, improved product quality, and long-term customer satisfaction.
In this article, we'll explore what precision tolerances are, why they matter in moulding inserts, how they affect product performance, and why partnering with a precision manufacturer is essential for global industries.
What Are Precision Tolerances?
A tolerance is the allowable variation in the dimensions of a manufactured component.
For example:
If a moulding insert is designed with an outer diameter of 8.00 mm, the acceptable tolerance may be:
8.00 ± 0.02 mm
This means the actual diameter can range between 7.98 mm and 8.02 mm while still meeting design specifications.
The tighter the tolerance, the more accurate the component.
Why Precision Tolerances Matter in Moulding Inserts
Moulding inserts are embedded into plastic components and provide durable threaded connections.
If the insert dimensions are inaccurate, several issues may occur:
- Loose fitting
- Difficult installation
- Poor thread engagement
- Plastic cracking
- Insert rotation
- Reduced pull-out strength
- Product failure
Precision tolerances eliminate these risks by ensuring every insert performs exactly as intended.
1. Perfect Fit Inside Plastic Components
Every plastic component is designed with precise insert pockets or holes.
A moulding insert with incorrect dimensions may:
- Become loose
- Be difficult to install
- Damage the surrounding plastic
- Reduce product strength
Precision machining ensures every insert fits perfectly, creating a secure and reliable connection.
2. Improved Thread Accuracy
The internal thread is one of the most important features of a moulding insert.
High thread accuracy ensures:
- Smooth screw engagement
- Proper torque application
- Reduced cross-threading
- Long thread life
Poor thread quality often leads to assembly delays and customer complaints.
3. Better Pull-Out Resistance
The outer diameter and knurl geometry of the insert directly affect retention strength.
Precision manufacturing ensures:
- Uniform knurl dimensions
- Accurate outer diameter
- Consistent grip inside plastic
This improves pull-out resistance and overall product durability.
4. Higher Torque Performance
When fasteners are tightened, the insert must remain securely locked inside the plastic component.
Precision tolerances help achieve:
- Better torque resistance
- Reduced insert rotation
- Stronger fastening performance
This is especially important in automotive, aerospace, and industrial equipment.
5. Consistent Performance in Mass Production
Large manufacturers often produce thousands or even millions of plastic components every month.
If insert dimensions vary from batch to batch, production problems can include:
- Increased rejection rates
- Machine downtime
- Assembly delays
- Higher manufacturing costs
Precision tolerances ensure every insert is identical, enabling seamless automated assembly.
Industries That Demand High Precision
Automotive Industry
Automotive components require:
- Exact fitment
- High vibration resistance
- Reliable threaded connections
- Long service life
Precision inserts are used in dashboards, sensor housings, ECUs, and interior trim components.
Consumer Electronics
Compact products demand extremely tight tolerances.
Applications include:
- Smartphones
- Laptops
- Routers
- Smart home devices
Precision inserts ensure flawless assembly in limited spaces.
Medical Devices
Medical equipment cannot tolerate dimensional inaccuracies.
Precision moulding inserts provide:
- Safe fastening
- Reliable assembly
- Consistent product quality
Aerospace Industry
Aircraft components require exceptional precision to maintain safety and performance.
Even the smallest dimensional error can affect critical assemblies.
Industrial Automation
Industrial machinery relies on precision inserts to maintain continuous operation and minimize maintenance.
How Precision Tolerances Are Achieved
Producing high-precision moulding inserts requires advanced manufacturing technology and strict quality control.
CNC Turning
Modern CNC machines manufacture inserts with micron-level accuracy.
Precision Threading
Threads are machined using advanced tooling to ensure consistent engagement and strength.
Knurling Control
Specialized knurling tools create uniform patterns for maximum retention.
In-Process Inspection
Critical dimensions are checked throughout production to maintain consistency.
Final Quality Inspection
Each batch undergoes detailed inspection using precision measuring equipment such as:
- Digital micrometers
- Thread gauges
- Optical comparators
- Coordinate Measuring Machines (CMM)
The Cost of Poor Tolerances
Using poorly manufactured moulding inserts may result in:
- Assembly failures
- Product recalls
- Loose fasteners
- Customer dissatisfaction
- Increased warranty claims
- Higher production costs
Investing in precision inserts reduces these risks significantly.
Benefits of Precision Moulding Inserts
Manufacturers benefit from:
✔ Perfect dimensional accuracy
✔ Consistent thread quality
✔ Superior pull-out strength
✔ Excellent torque resistance
✔ Faster assembly
✔ Lower rejection rates
✔ Improved product reliability
✔ Longer service life
✔ Reduced manufacturing costs
✔ Enhanced customer satisfaction
Choosing the Right Precision Moulding Insert Manufacturer
When selecting a supplier, manufacturers should evaluate:
- CNC machining capability
- Experience in precision engineering
- Quality certifications
- Inspection facilities
- Material expertise
- Custom manufacturing capability
- Global supply reliability
A trusted supplier becomes a long-term manufacturing partner rather than just a component vendor.
Future of Precision Manufacturing
As industries adopt:
- Electric vehicles (EVs)
- Smart electronics
- Medical robotics
- IoT devices
- Industry 4.0 automation
The demand for tighter tolerances and higher-quality moulding inserts will continue to grow.
Precision manufacturing will remain a cornerstone of product innovation and global competitiveness.
Conclusion
Precision tolerances are the foundation of reliable moulding inserts. They ensure perfect fitment, accurate threading, strong retention, and consistent performance across every product manufactured.
For industries where quality, safety, and durability are critical, investing in precision-engineered moulding inserts is essential.
By choosing a manufacturer with advanced CNC machining capabilities and rigorous quality control, businesses can reduce defects, improve efficiency, and deliver products that exceed customer expectations.
