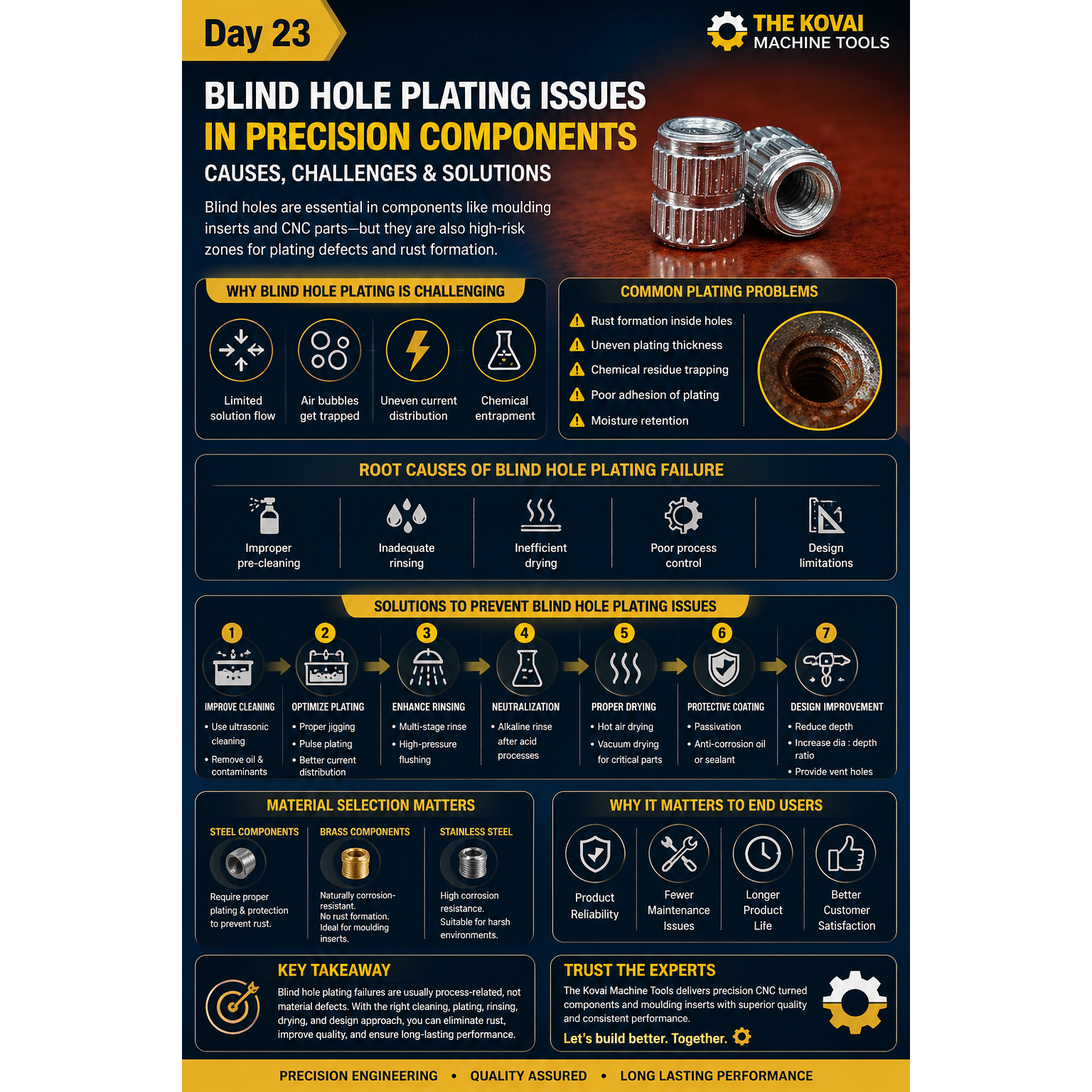

Blind Hole Plating Issues in Precision Components – Causes, Challenges & Solutions
Introduction
In precision manufacturing, surface finishing processes such as plating play a critical role in improving corrosion resistance, durability, and product life. However, when it comes to components with blind holes, plating becomes significantly more challenging.
Blind holes—holes that do not pass completely through a component—are widely used in moulding inserts, CNC turned parts, and industrial components. While they serve important design functions, they also introduce hidden risks during plating, especially corrosion and rust formation.
Many manufacturers face issues like:
- Rust inside threaded holes
- Uneven plating
- Chemical entrapment
- Reduced product life
These problems often go unnoticed until the product fails in real-world use.
In this article, we will explore blind hole plating issues, their root causes, and practical solutions to help manufacturers achieve better quality and reliability.
What Is a Blind Hole?
A blind hole is a cavity drilled into a component that does not go all the way through.
Common Applications:
- Threaded inserts
- Fastening points in plastic moulded parts
- Automotive and machinery components
Because they are closed at one end, blind holes are difficult to clean, plate, and dry properly.
Why Blind Hole Plating Is Challenging
Unlike open or through holes, blind holes create several processing challenges:
Limited Solution Flow
Plating solutions cannot circulate freely inside the hole.
Air Bubble Formation
Air gets trapped inside, preventing plating chemicals from reaching inner surfaces.
Uneven Current Distribution
Electroplating current is weaker inside deep cavities, resulting in poor coating thickness.
Chemical Entrapment
Acids and plating chemicals remain trapped, causing corrosion later.
Common Blind Hole Plating Problems
1. Rust Formation Inside Holes
One of the most common issues is rust forming inside blind holes after plating.
Causes:
- Incomplete plating coverage
- Residual moisture
- Chemical entrapment
Impact:
- Weak threads
- Product failure
- Reduced customer trust
2. Uneven Plating Thickness
The outer surface may have proper coating, while the inner surface remains thin or uncoated.
Causes:
- Poor current distribution
- Deep hole geometry
3. Chemical Residue Trapping
Acidic solutions used during plating may remain inside blind holes.
Impact:
- Continuous chemical reaction
- Internal corrosion over time
4. Poor Adhesion of Plating
If cleaning is not done properly, plating may not adhere inside the hole.
Result:
- Flaking or peeling coating
- Exposure of base metal
5. Moisture Retention
Blind holes trap water easily during rinsing.
Result:
- Rust formation after a few days or weeks
Root Causes of Blind Hole Plating Failure
Improper Pre-Cleaning
Oil, grease, and machining residues prevent proper plating adhesion.
Inadequate Rinsing
Chemicals are not fully removed after plating.
Inefficient Drying
Moisture remains trapped inside cavities.
Poor Process Control
Lack of proper jigging, agitation, or current distribution.
Design Limitations
Deep and narrow holes make plating difficult.
Solutions to Blind Hole Plating Problems
1. Improve Cleaning Process
- Use ultrasonic cleaning
- Ensure removal of oil and contaminants
- Clean thoroughly before plating
2. Optimize Plating Technique
- Use proper jigging to improve solution access
- Apply pulse plating or auxiliary anodes
- Ensure better current distribution
3. Enhance Rinsing Process
- Use multi-stage rinsing
- Apply high-pressure flushing
- Ensure chemicals are completely removed
4. Neutralization Treatment
- Use alkaline rinses after acid processes
- Prevent chemical reaction inside holes
5. Proper Drying Methods
- Hot air drying
- Vacuum drying for critical components
6. Apply Protective Coatings
- Passivation treatments
- Anti-corrosion coatings
- Oil or sealant application
7. Design Improvement (Highly Recommended)
- Reduce hole depth where possible
- Increase diameter-to-depth ratio
- Provide vent holes for airflow
Material Selection Matters
Material choice plays a key role in preventing corrosion issues.
Steel Components
Require proper plating and protection to prevent rust.
Brass Components
- Naturally corrosion-resistant
- No rust formation
- Ideal for moulding inserts
Stainless Steel
- High corrosion resistance
- Suitable for harsh environments
Why This Matters for End Customers
For end users, blind hole plating issues can result in:
- Product failure
- Assembly difficulties
- Increased maintenance
- Reduced product life
Avoiding these problems improves reliability, performance, and customer satisfaction.
Industries Affected
Blind hole plating challenges are critical in:
- Automotive components
- Electronics and connectors
- Industrial machinery
- Plastic injection moulding inserts
Conclusion
Blind hole plating is a complex process that requires careful attention to cleaning, plating, rinsing, and drying.
Most failures, such as rust formation and uneven coating, are not material defects but process-related issues.
By improving process control and considering better design and material selection, manufacturers can eliminate these problems and deliver high-quality, durable components.
