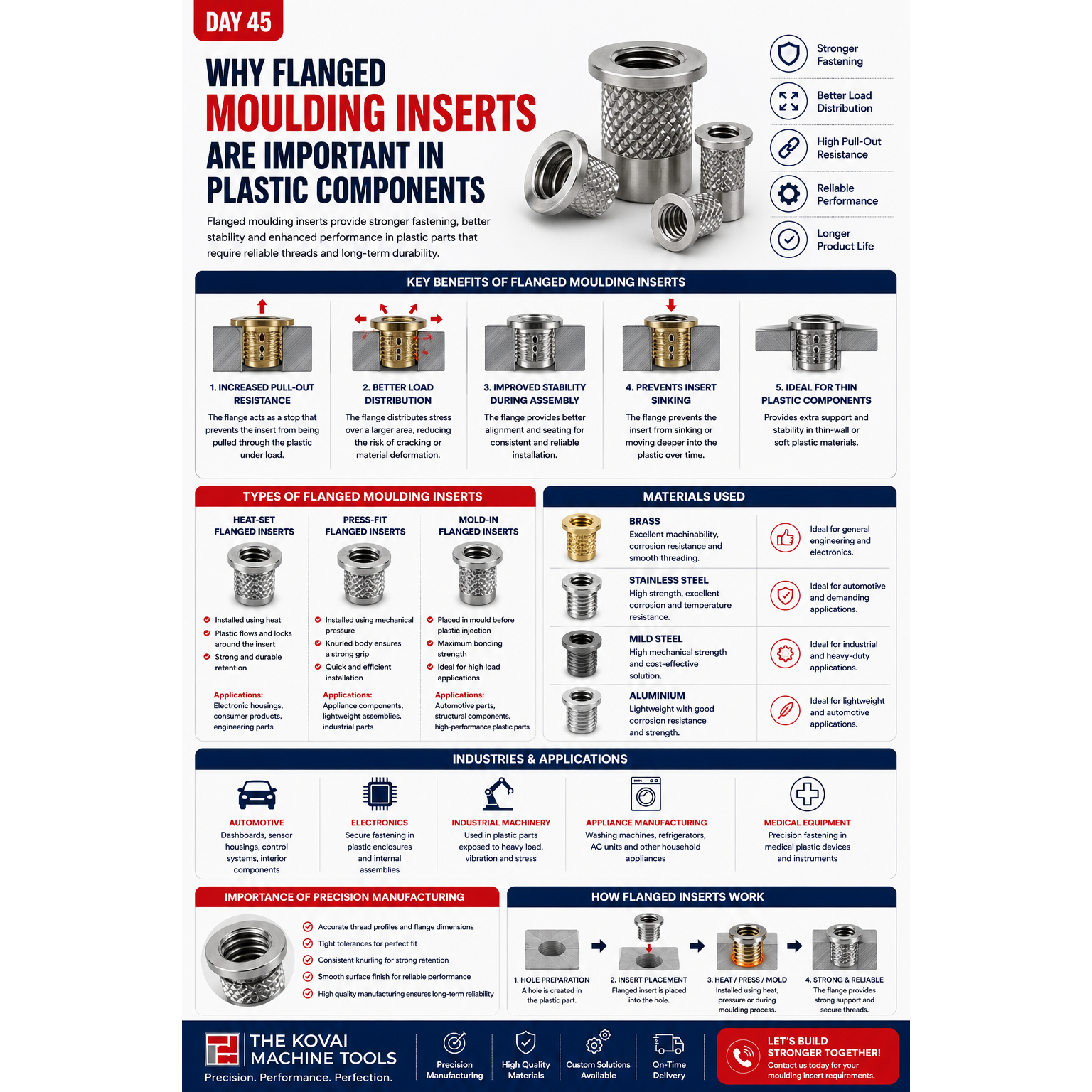

Flanged Moulding Inserts Are Important in Plastic Components
Introduction
Modern manufacturing industries rely heavily on plastic injection moulded components because they are lightweight, cost-effective, corrosion-resistant, and suitable for complex product designs. From automotive interiors and electronic housings to industrial machinery and home appliances, plastic parts are used in almost every sector.
However, when plastic components require strong fastening, repeated assembly, and high mechanical stability, plastic alone is often not enough. To improve durability and thread strength, manufacturers use precision moulding inserts.
Among the various types of inserts available, flanged moulding inserts are widely used because they provide additional support, improved retention, and better load distribution in plastic components.
Flanged inserts are designed with an extended flange or collar at one end of the insert. This flange improves stability and prevents the insert from moving or pulling through the plastic during assembly and operation.
In this article, we will explore why flanged moulding inserts are important in plastic components, their benefits, applications, and why industries worldwide depend on them for reliable fastening solutions.
What Are Flanged Moulding Inserts?
Flanged moulding inserts are precision-machined metal inserts designed with a flange or enlarged head section on one side.
Like standard threaded inserts, they are embedded into plastic components to provide durable internal threads. However, the flange provides additional mechanical support and stability.
These inserts are commonly manufactured using:
- Brass
- Stainless Steel
- Mild Steel
- Aluminium
They are produced using precision CNC turning and machining processes to ensure accurate dimensions and high performance.
Why Standard Inserts Are Sometimes Not Enough
Standard moulding inserts provide strong internal threads, but in some applications, additional reinforcement is required.
Without a flange, inserts may face issues such as:
- Pull-through under high load
- Reduced stability in softer plastics
- Stress concentration around the insert area
- Insert movement during repeated assembly
Flanged inserts solve these problems by increasing the contact area between the insert and the plastic component.
How Flanged Inserts Improve Plastic Component Performance
1. Increased Pull-Out Resistance
One of the biggest advantages of flanged inserts is their ability to resist pull-out forces.
The flange acts as a mechanical stop that prevents the insert from being pulled through the plastic during tightening or operational loads.
This is especially important in applications exposed to vibration, torque, or repeated mechanical stress.
2. Better Load Distribution
When screws are tightened into plastic components, stress is concentrated around the insert area.
The flange helps distribute the load over a larger surface area, reducing stress concentration.
This minimizes the risk of:
- Plastic cracking
- Material deformation
- Structural failure
As a result, the plastic component becomes more durable and reliable.
3. Improved Stability During Assembly
Flanged inserts provide better positioning and alignment during installation.
The flange helps seat the insert securely within the plastic component, reducing the chances of improper installation.
This improves assembly consistency and manufacturing efficiency.
4. Prevention of Insert Sinking
In softer plastic materials, standard inserts may gradually sink deeper into the plastic over time due to tightening forces.
The flange prevents this movement by acting as a support surface.
This helps maintain stable thread positioning throughout the product's lifespan.
5. Enhanced Performance in Thin Plastic Components
Thin-wall plastic components often lack enough material thickness to securely hold standard inserts.
Flanged inserts provide additional support and stability, making them ideal for thin plastic sections.
Common Types of Flanged Moulding Inserts
Flanged inserts are available in different designs depending on installation methods and application requirements.
Heat-Set Flanged Inserts
These inserts are installed using heat, which softens the surrounding plastic during insertion.
Once cooled, the plastic solidifies around the insert and flange, creating strong retention.
Common Applications
- Electronic housings
- Consumer products
- Engineering plastic components
Press-Fit Flanged Inserts
Press-fit flanged inserts are installed using mechanical pressure.
The flange provides additional stability while the knurled body grips the plastic.
Common Applications
- Appliance components
- Lightweight assemblies
- Industrial plastic parts
Mold-In Flanged Inserts
These inserts are placed inside the mould before the injection moulding process.
The plastic flows around the insert during moulding, creating maximum bonding strength.
Common Applications
- Automotive components
- High-load industrial applications
- Structural plastic assemblies
Materials Used for Flanged Inserts
Material selection depends on application requirements such as strength, corrosion resistance, and environmental conditions.
Brass Flanged Inserts
Brass is one of the most widely used materials because of its excellent machinability and corrosion resistance.
Brass inserts provide smooth threading and precision performance.
Stainless Steel Flanged Inserts
Stainless steel offers high strength and excellent resistance to corrosion and temperature.
It is ideal for demanding industrial and automotive applications.
Mild Steel Flanged Inserts
Mild steel inserts are used where high mechanical strength is required at economical cost.
Aluminium Flanged Inserts
Aluminium inserts are used in lightweight applications where weight reduction is important.
Industries That Use Flanged Moulding Inserts
Flanged inserts are used across many industries that require durable plastic assemblies.
Automotive Industry
Automotive manufacturers use flanged inserts in dashboards, sensor housings, control systems, and plastic structural components.
These inserts help withstand vibration and repeated assembly.
Consumer Electronics
Electronic devices rely on flanged inserts for secure fastening in plastic enclosures and internal assemblies.
Industrial Machinery
Industrial equipment uses flanged inserts in plastic parts exposed to heavy mechanical loads.
Appliance Manufacturing
Household appliances such as washing machines, refrigerators, and air conditioners use flanged inserts for reliable fastening.
Importance of Precision Manufacturing
The performance of flanged moulding inserts depends heavily on manufacturing accuracy.
High-quality inserts must be manufactured with:
- Accurate thread profiles
- Precision flange dimensions
- Tight tolerances
- Smooth surface finishes
- Consistent knurling patterns
Advanced CNC machining processes ensure that every insert meets exact engineering requirements.
Poor-quality inserts can lead to assembly issues, weak retention, or product failure.
Advantages of Precision Flanged Inserts
Using high-quality precision flanged inserts provides several long-term benefits:
✔ Improved fastening reliability
✔ Higher pull-out resistance
✔ Better vibration resistance
✔ Reduced plastic damage
✔ Longer product life
✔ Reliable repeated assembly
These benefits make flanged inserts essential in modern plastic component manufacturing.
Conclusion
Flanged moulding inserts play a vital role in strengthening plastic components and improving fastening reliability.
Their flange design provides additional support, better load distribution, increased pull-out resistance, and improved assembly stability.
As industries continue to demand lightweight yet durable products, flanged inserts have become an essential solution for reliable plastic component design.
With proper material selection and precision manufacturing, flanged moulding inserts significantly improve the performance and lifespan of plastic products across multiple industries.
