Press-Fit vs Heat-Set Inserts – Which One Is Better for Plastic Components?
Introduction
Plastic injection moulding is widely used across many industries because it enables manufacturers to produce lightweight, complex, and cost-effective components. However, when plastic parts require strong threaded connections, plastic alone cannot always provide the necessary strength and durability.
This is why moulding inserts are used.
Moulding inserts are precision-machined metal components embedded into plastic parts to create strong internal threads and improve the overall performance of the product. These inserts allow screws and bolts to be tightened securely without damaging the plastic material.
Among the different types of moulding inserts, press-fit inserts and heat-set inserts are two of the most commonly used options in the industry.
Each method has its own advantages and is suitable for specific applications depending on the design of the plastic component, the required strength, and the production process.
In this article, we will explore the differences between press-fit and heat-set inserts, how they work, and how to choose the right solution for your application.
Understanding Moulding Inserts in Plastic Components
Before comparing press-fit and heat-set inserts, it is important to understand why inserts are used in plastic parts.
Plastic materials such as ABS, nylon, polycarbonate, and polypropylene are widely used in injection moulding. While these materials offer flexibility and lightweight design, they are not always strong enough to hold threads reliably.
Without reinforcement, plastic threads may experience problems such as:
- Thread stripping
- Weak fastening
- Wear from repeated assembly
- Cracking around threaded holes
Moulding inserts solve these problems by providing durable metal threads embedded within the plastic component.
What Are Press-Fit Inserts?
Press-fit inserts are metal inserts that are installed into plastic components by applying mechanical pressure.
These inserts are designed with knurled or textured outer surfaces that grip the plastic material tightly once pressed into place.
The installation process is simple and usually performed using a press machine or assembly tool.
How Press-Fit Inserts Work
A hole is first created in the plastic component with a specific diameter. The insert is then pressed into the hole using force.
The knurled surface on the insert creates friction and mechanical locking between the insert and the plastic.
Once installed, the insert provides strong internal threads for fastening screws or bolts.
Advantages of Press-Fit Inserts
Press-fit inserts offer several benefits that make them suitable for many manufacturing applications.
Simple Installation
Press-fit inserts can be installed quickly using mechanical pressure, making them ideal for high-volume production.
Cost-Effective Solution
Because the installation process does not require special heating equipment, press-fit inserts are generally economical.
Fast Assembly
The installation process is straightforward and can easily be integrated into automated assembly lines.
Suitable for Rigid Plastics
Press-fit inserts work well with plastics that have high rigidity and dimensional stability.
Limitations of Press-Fit Inserts
Despite their advantages, press-fit inserts may not always be suitable for every application.
Some potential limitations include:
Risk of Plastic Stress
Pressing inserts into plastic components may create stress around the hole, which can lead to cracking in some materials.
Lower Pull-Out Strength
Compared to some other installation methods, press-fit inserts may provide lower resistance to pull-out forces.
Sensitivity to Tolerance
The hole diameter must be carefully controlled to ensure proper installation.
What Are Heat-Set Inserts?
Heat-set inserts are installed into plastic components using heat.
In this method, the insert is heated and pressed into the plastic, which softens the surrounding material. Once the plastic cools, it solidifies around the insert, creating a strong bond.
Heat-set inserts are commonly used in engineering plastics and provide excellent retention strength.
How Heat-Set Inserts Work
A heat-set installation tool is used to heat the insert before it is pressed into the plastic component.
As the insert enters the plastic, the surrounding material melts slightly and flows around the knurled surface of the insert.
When the plastic cools and solidifies, it forms a tight mechanical bond with the insert.
This process provides strong retention and long-term stability.
Advantages of Heat-Set Inserts
Heat-set inserts provide several important advantages in plastic component design.
Strong Insert Retention
Because the plastic flows around the insert during installation, heat-set inserts provide excellent resistance to pull-out and rotation.
Reduced Stress on Plastic
Unlike press-fit inserts, heat-set installation softens the plastic during insertion, reducing the risk of cracking.
Better Performance in Engineering Plastics
Heat-set inserts perform especially well in materials such as nylon, ABS, and polycarbonate.
Reliable for Repeated Assembly
Heat-set inserts provide durable metal threads that withstand repeated tightening and loosening.
Limitations of Heat-Set Inserts
Although heat-set inserts offer many benefits, they also have some considerations.
Additional Equipment Required
Heat-set installation requires specialized tools that apply heat and pressure.
Slightly Slower Installation
Compared to press-fit inserts, heat-set inserts may take more time to install.
Higher Installation Cost
Because of the equipment and process involved, heat-set installation may increase production costs slightly.

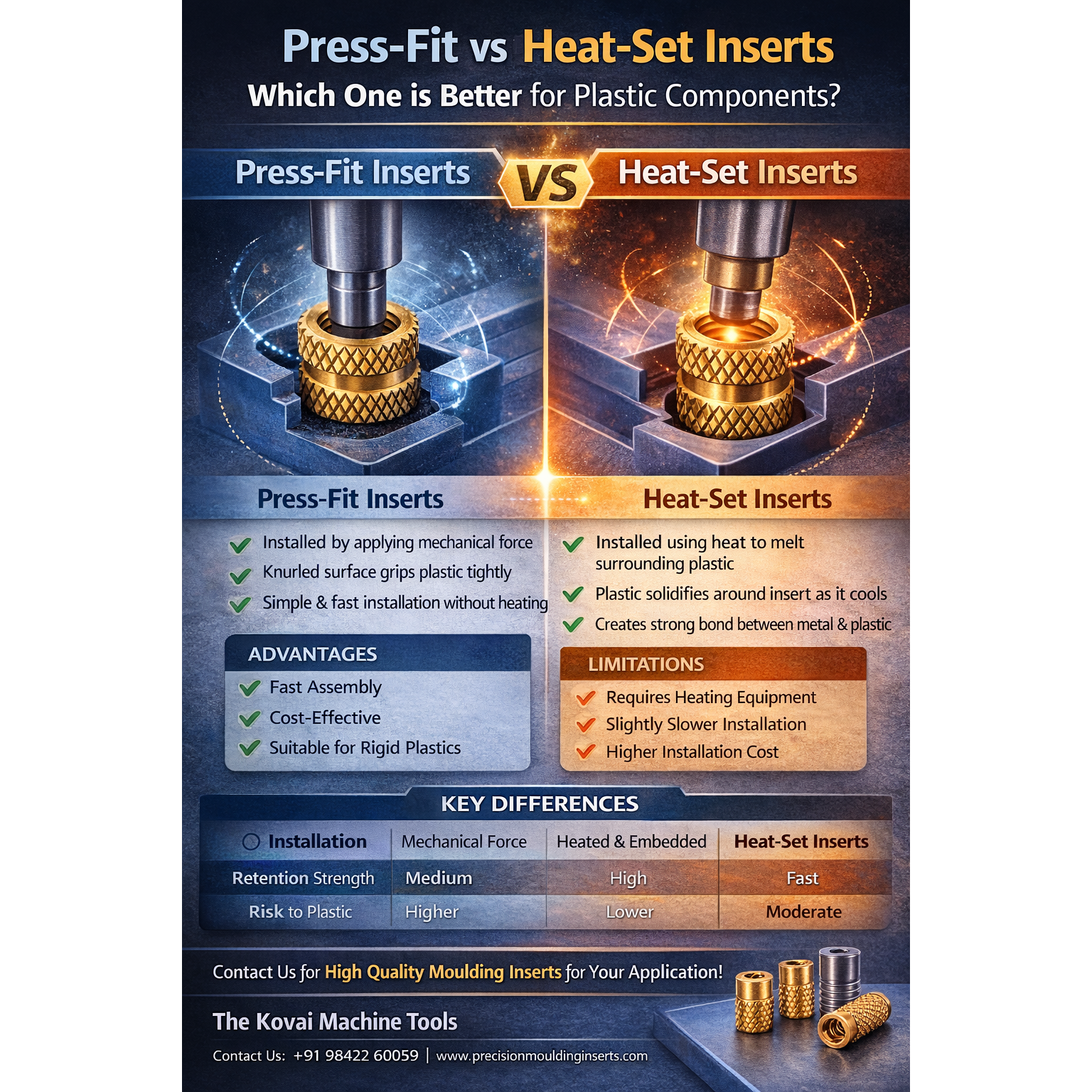

Press-Fit vs Heat-Set Inserts – Key Differences
Installation Method
Press-fit inserts rely on mechanical force, while heat-set inserts use heat to embed the insert into plastic.
Strength and Retention
Heat-set inserts typically provide stronger retention and better resistance to pull-out.
Risk of Plastic Damage
Press-fit inserts may create stress in the plastic, whereas heat-set inserts reduce this risk by softening the material during installation.
Production Speed
Press-fit inserts are generally faster to install in high-volume production environments.
Equipment Requirements
Press-fit inserts require minimal equipment, while heat-set inserts require heating tools.
When to Use Press-Fit Inserts
Press-fit inserts are often preferred in applications where:
- Production speed is critical
- Plastic materials are rigid
- Cost efficiency is important
- Installation equipment needs to be simple
They are commonly used in consumer electronics, appliance housings, and lightweight plastic components.
When to Use Heat-Set Inserts
Heat-set inserts are ideal for applications where:
- High pull-out strength is required
- Plastic materials are softer or more flexible
- Long-term durability is critical
- Engineering plastics are used
They are widely used in automotive components, industrial equipment, and high-performance plastic parts.
Importance of Precision Manufacturing
Regardless of the installation method used, the performance of moulding inserts depends on precision manufacturing.
High-quality inserts must be produced with:
- Accurate thread profiles
- Tight dimensional tolerances
- High-quality materials
- Proper surface finishes
Precision CNC machining ensures that inserts perform reliably and fit perfectly within plastic components.
Conclusion
Both press-fit inserts and heat-set inserts play an important role in strengthening plastic components and improving product reliability.
Press-fit inserts offer simple installation and cost-effective production, making them suitable for many standard applications.
Heat-set inserts provide stronger retention and improved durability, making them ideal for demanding applications and engineering plastics.
By understanding the differences between these two types of inserts, manufacturers can choose the best solution for their product design and production requirements.
